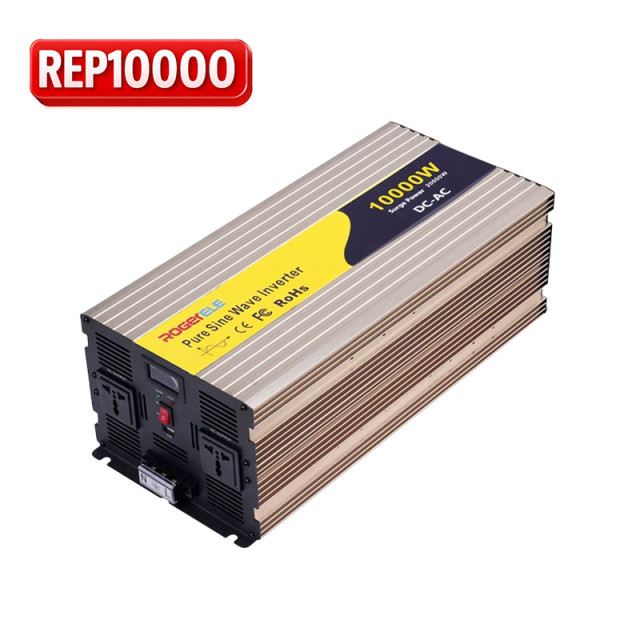

ROGERELE REP10000 delivers 10000W rated pure sine wave AC output with 20000W listed peak power. Choose a separate 24V or 48V DC model and 220V, 230V or 240V AC configuration at 50Hz or 60Hz. Review B2B specifications and battery requirements for off-grid systems, mobile power and equipment integration.
|
|
|||||||||||
Use these scenarios to prepare a purchasing specification. Suitability depends on the complete battery system, connected loads and installation conditions.
|
Application
|
What to confirm before ordering
|
|---|---|
|
RVs, camper vans & service vehicles
|
Review auxiliary battery voltage, charging capacity, appliance starting loads, mounting and required runtime. A vehicle model alone does not establish compatibility.
|
|
Boats & marine battery systems
|
Confirm the battery supply, ventilation, dry installation location and project-specific electrical requirements. Marine approval, waterproofing and corrosion-resistance ratings are not stated in the published specification.
|
|
Off-grid cabins & solar battery systems
|
Convert power from a suitable battery bank to AC for selected loads. REP10000 is not a solar charge controller or grid-tie inverter; charging and system protection require separate design.
|
|
Mobile workstations & field service
|
Provide the combined load and starting characteristics of tools, instruments and other equipment. Confirm supply capacity and operating environment before choosing a model.
|
|
Equipment brands & distributors
|
Specify DC input, AC voltage, frequency, outlet, quantity and destination. Request drawings and relevant documentation; discuss branding and packaging feasibility with the quotation.
|

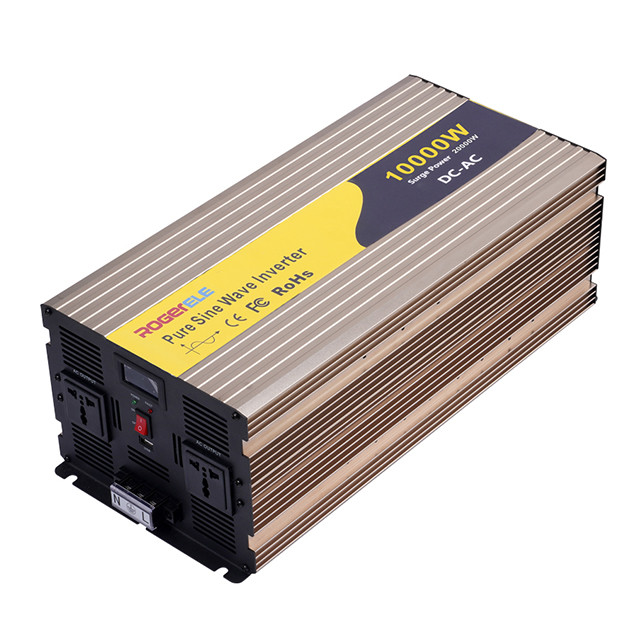

The actual REP10000 catalog photo below shows an AC output configuration. Confirm socket format, terminal arrangement and the permitted load for each connection in the ordered version. Do not assume that one socket can carry the full inverter rating.
|
REP10000 output configuration
|
||
|---|---|---|
REP10000 · Catalog output-panel example · Click to enlarge |
||
|
AC voltage ±5%
|
Choose 220 / 230 / 240V for the destination market. These are order variants, not selectable outputs on every unit.
|
|
|
Output frequency
|
Specify 50Hz or 60Hz; listed tolerance ±0.5Hz. Match the connected equipment and destination requirements.
|
|
|
Sockets & connections
|
Provide the required outlet format and installation connection. Confirm availability, current limits and wiring instructions for the exact REP10000 configuration.
|
|
|
Market documentation
|
Specify destination country and required product documents before ordering. The photo alone does not establish certification or installation compliance.
|
|
03 / TECHNICAL SPECIFICATIONS
|
Parameter
|
Specification
|
|---|---|
|
Rated / peak output
|
10000W / 20000W; peak duration not specified
|
|
Waveform / distortion
|
Pure sine wave / THD <3% with linear load
|
|
Output frequency
|
50Hz ±0.5Hz or 60Hz ±0.5Hz
|
|
Maximum efficiency
|
24V: 92%; 48V: 95%. Maximum values vary with load and conditions
|
|
USB / cooling
|
QC3.0 · Intelligent air cooling
|
|
Operating / storage temperature
|
−10°C to +50°C / −30°C to +70°C
|
|
Listed warranty
|
2 years; confirm coverage and service terms
|
04 / TWO MODEL CODES
Choose one DC input and one AC output voltage. The voltages in each AC family are ordering options, not user-switchable settings on every unit.
|
REP10000-242
|
|
|---|---|
|
DC input
|
24V
|
|
AC output ±5%
|
220 / 230 / 240V
|
|
No-load current
|
<1.2A
|
|
REP10000-482
|
|
|---|---|
|
DC input
|
48V
|
|
AC output ±5%
|
220 / 230 / 240V
|
|
No-load current
|
<0.7A
|
|
Parameter
|
Specification
|
|---|---|
|
24V input variant
|
20–31V
|
|
48V input variant
|
40–61V
|
The catalog lists low-voltage, over-voltage, overload and over-temperature protection, short-circuit indication and fuse operation for reverse polarity. Confirm the settings and protection behavior for the ordered model.
Custom DC input projects: ask about 36V, 60V, 72V, 84V or 96V. Feasibility, operating range, quantity and lead time require confirmation; the standard REP10000 models listed here are 24V and 48V.
|
Parameter
|
Specification
|
|---|---|
|
Low-voltage alarm (24V / 48V)
|
21 ±0.5V / 42 ±1V
|
|
Low-voltage cutoff (24V / 48V)
|
20 ±0.5V / 40 ±0.5V
|
|
Over-voltage cutoff (24V / 48V)
|
31 ±0.5V / 61 ±1V
|
|
Low-voltage recovery (24V / 48V)
|
24 ±0.5V / 48 ±1V
|
|
Over-voltage recovery (24V / 48V)
|
29.5 ±0.5V / 59 ±1V
|
|
Parameter
|
Specification
|
|---|---|
|
Product dimensions
|
515 × 205 × 153 mm
|
|
Packing dimensions
|
600 × 295 × 240 mm
|
|
Net / gross weight
|
11 / 13 kg
|
|
Units per carton
|
1 pc
|
|
Carton dimensions
|
610 × 302 × 240 mm
|
|
Carton gross weight
|
13.9 kg
|
Confirm the final drawing and packing data before integration or freight booking.
05 / BUSINESS SOURCING
|
|
How should I plan a 10000W inverter for equipment or off-grid power?
|
|---|
|
List the equipment that will operate together, its continuous demand and any starting surge. Evaluate the 10000W rated output alongside battery discharge capability, charging capacity and installation conditions. REP10000 can be considered for off-grid battery systems, mobile workstations, RV auxiliary power and equipment projects after this review.
|
|
How do I choose between the 24V and 48V versions?
|
|---|
|
These are separate input variants, not selectable modes on one unit. Match the inverter to the battery bank’s nominal voltage and model-specific operating range. Confirm that the battery, charging system and discharge limits support the planned load.
|
|
Can REP10000 supply an RV or mobile service vehicle?
|
|---|
|
Evaluate the vehicle’s auxiliary power system, charging capacity, loads and mounting conditions. A cigarette lighter or accessory socket is not suitable for the rated 10000W output. A dedicated battery connection and correctly specified cables and circuit protection require a qualified installer and model-specific instructions.
|
|
Can REP10000 be used in an off-grid solar battery system?
|
|---|
|
It converts DC from a suitable battery bank into AC. It does not replace a solar charge controller, battery charger or battery management system. Do not connect a solar array directly on the assumption that the inverter controls charging. Provide the system diagram and load requirements for review.
|
|
What should boat or marine equipment buyers confirm?
|
|---|
|
Check the battery voltage, load profile, mounting location, ventilation and applicable project requirements. The published REP10000 specification does not establish waterproofing or marine certification. Request the exact model documentation before approving it for a marine installation.
|
|
Will the 20000W peak start refrigerators, pumps or power tools?
|
|---|
|
The listed peak has no published duration or startup test condition, so it does not guarantee motor or compressor startup. Send equipment models, continuous demand and starting characteristics for a suitability review. Keep the combined continuous load within the rated output.
|
|
How should I estimate runtime for a 10kW battery inverter?
|
|---|
|
The 10000W rating is output capacity, not stored energy. Runtime depends on usable battery energy, actual AC demand and conversion losses. Provide battery chemistry, capacity, discharge limits and required operating time so the complete power system can be reviewed.
|
|
What should a B2B quotation request include?
|
|---|
|
Include company name, application, REP10000 model code, DC input, AC voltage and frequency, outlet, destination market, load list and quantity. Add sample, branding, packaging and documentation requirements. Availability, MOQ, customization feasibility, warranty terms and lead time are confirmed per quotation.
|
|
Can one AC socket supply the full 10000W rated output?
|
|---|
|
The inverter rating does not establish the current rating of an individual socket or connection. Confirm the output voltage, socket ratings, terminal arrangement and model-specific wiring instructions before allocating loads. Provide your equipment list and connection plan for review.
|
Review the existing product video. Confirm the electrical configuration and supplied accessories with your quotation.
