ROGERELE REP300 delivers 300W rated and 600W peak pure sine wave AC output. Choose a 12V, 24V or 48V DC input version with market-specific AC voltage, frequency and outlet. Compact 208 × 112 × 60 mm enclosure, 0.85 kg net weight and a listed two-year warranty. For distributors, OEM buyers and equipment integration projects.
|
|
|||||||||||
02 / DESTINATION-MARKET OPTIONS
Specify socket type, AC voltage and frequency separately. The photos show configuration examples; confirm the exact version in your order.
|
Outlet configuration options
|
|||
|---|---|---|---|

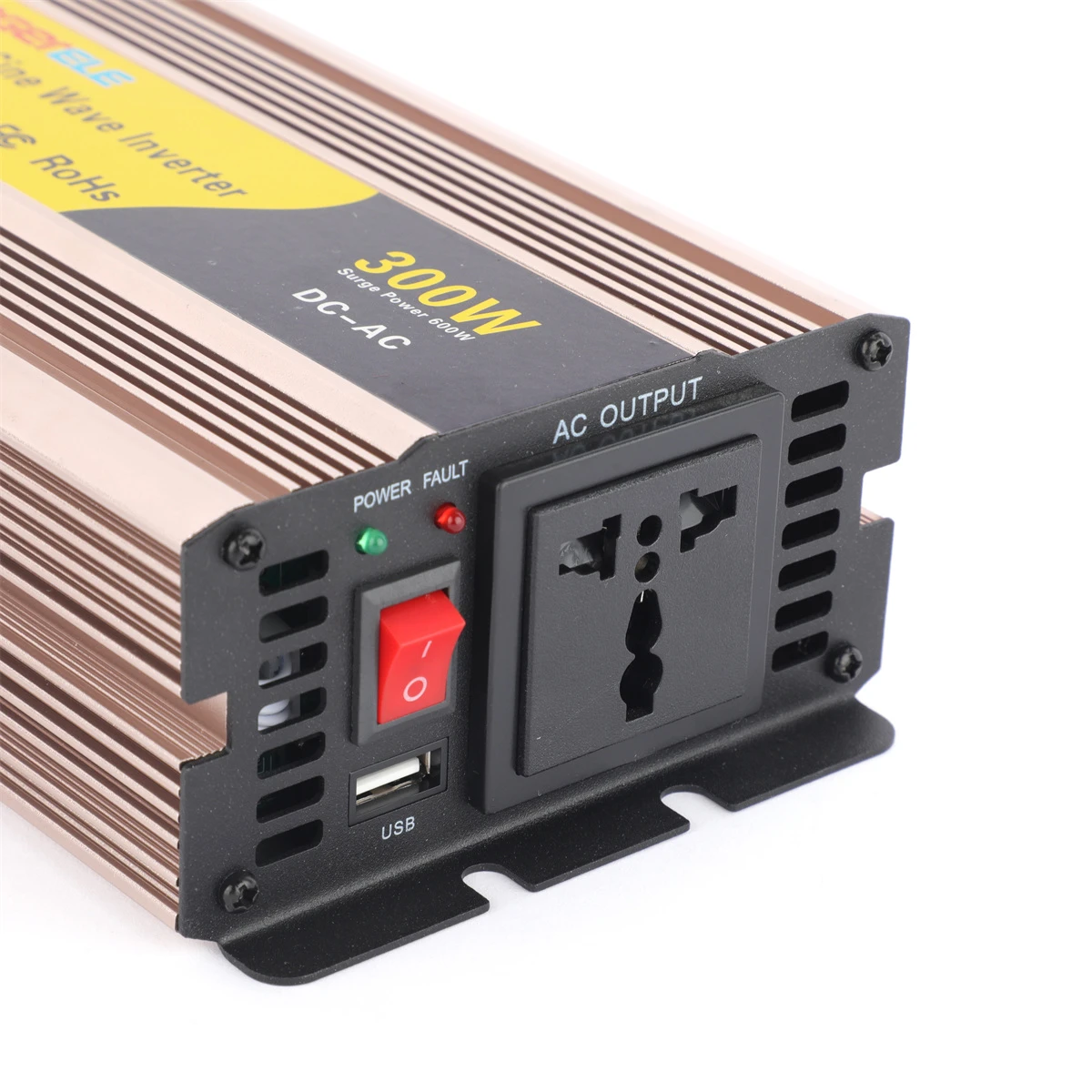

Multi-format outlet
|

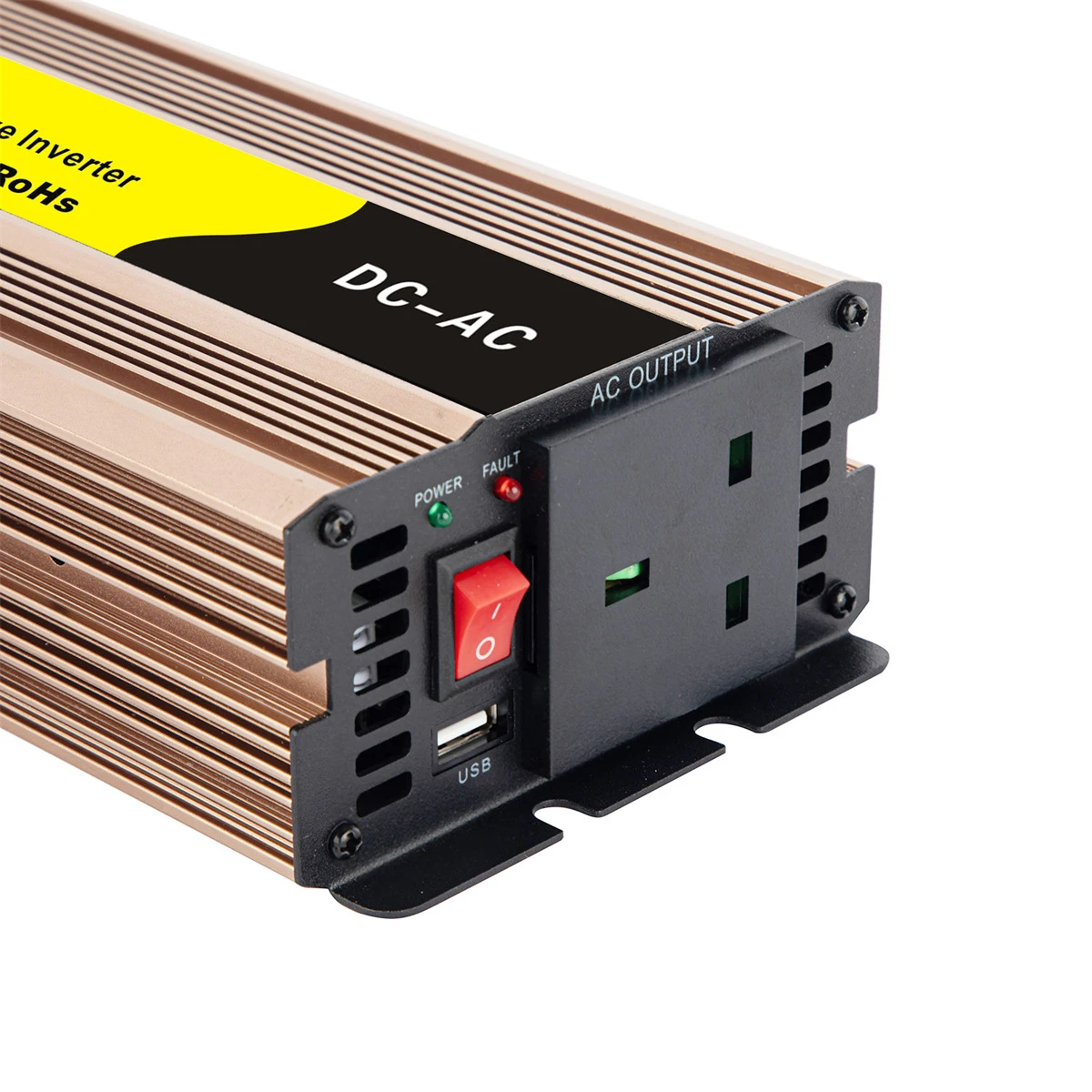

UK-style outlet
|
||

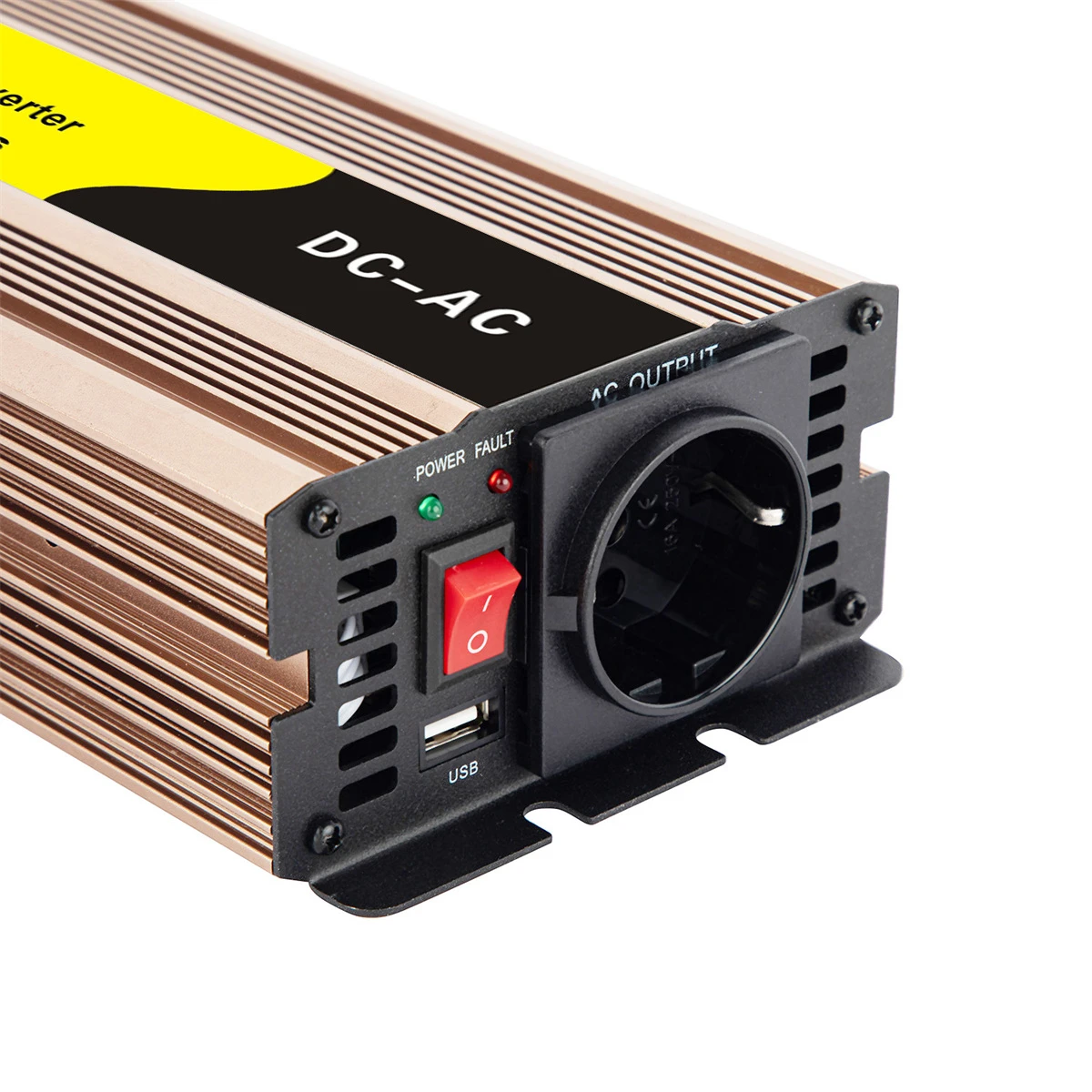

Schuko-style outlet
|

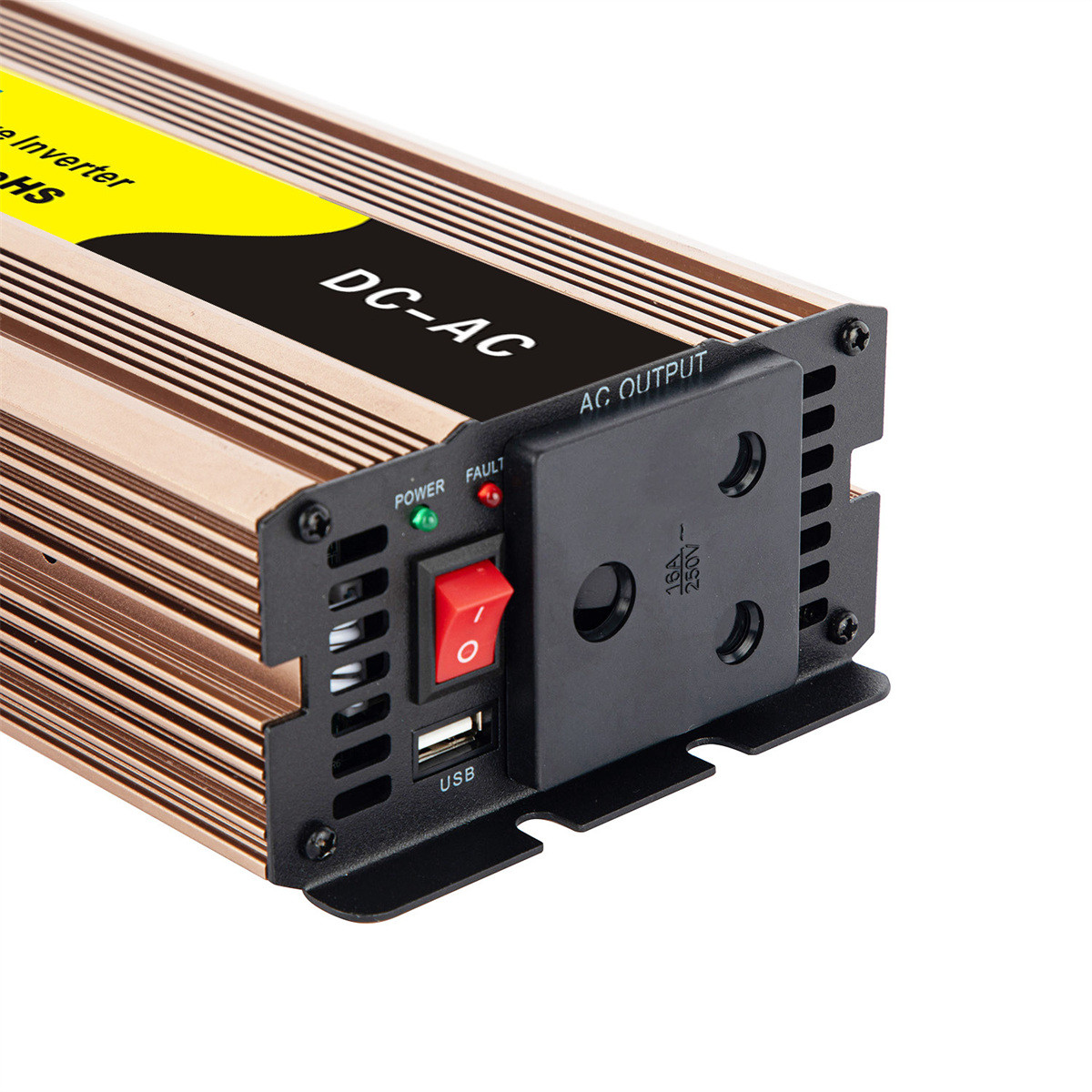

South African-style outlet
|
||

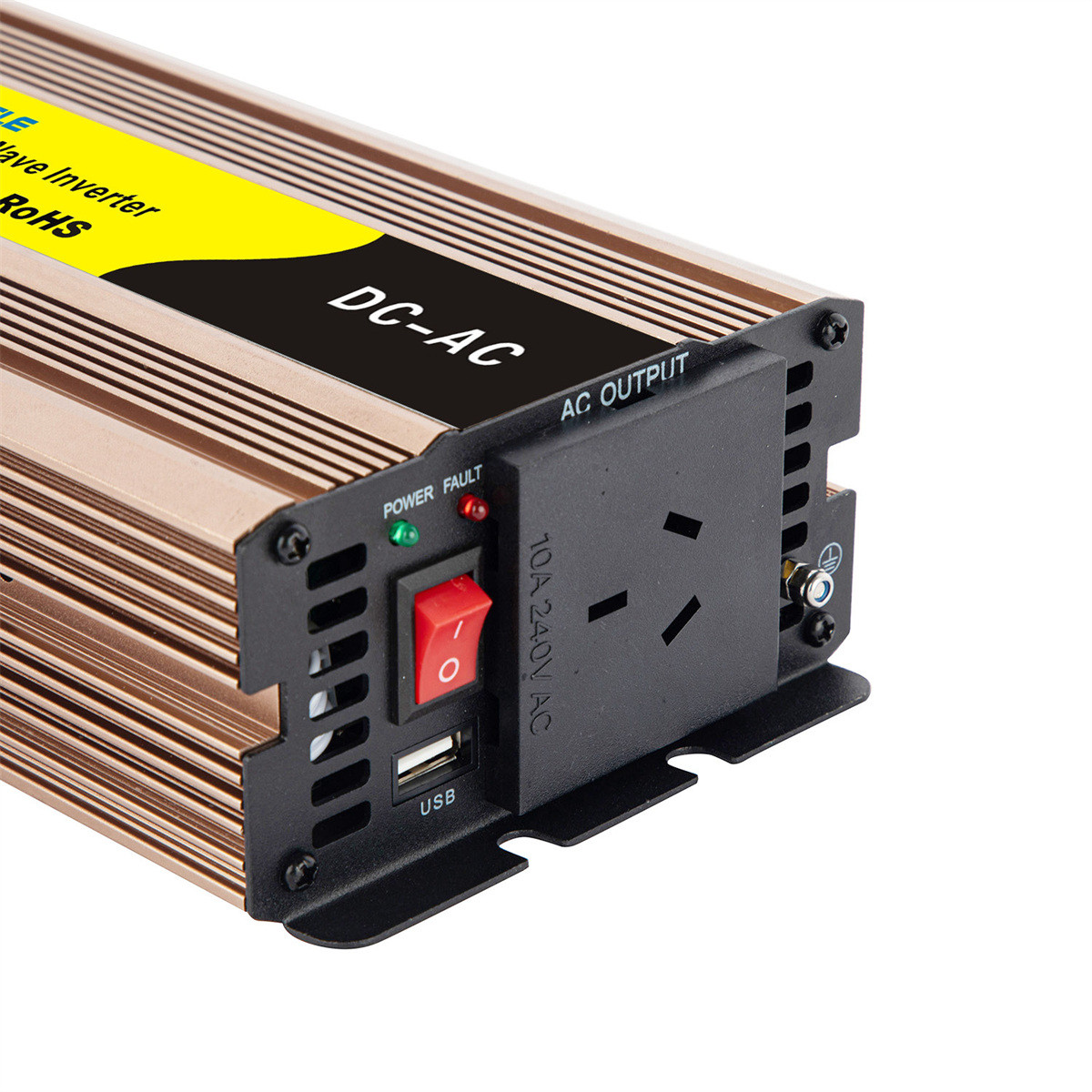

Australian-style outlet
|

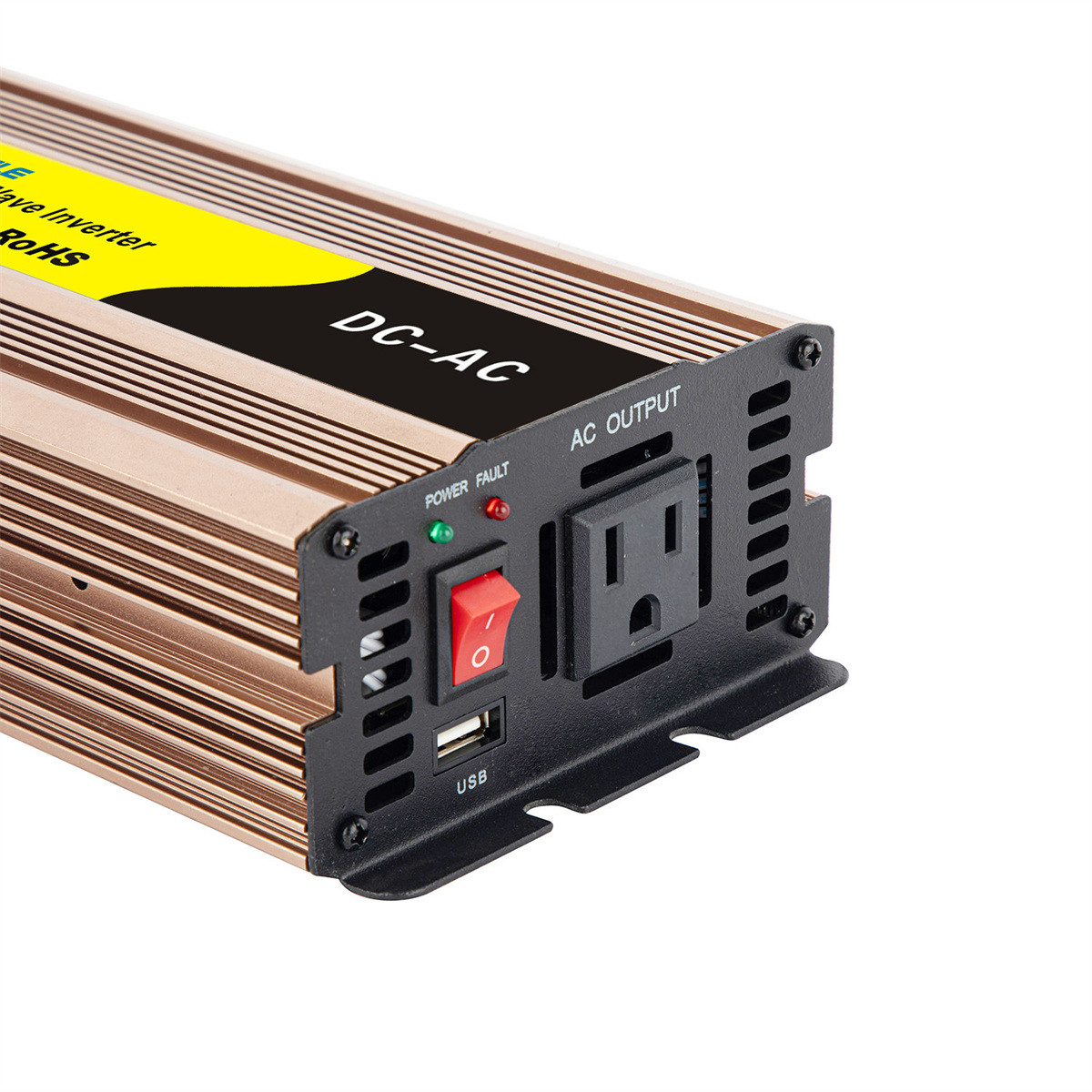

US-style outlet
|
||
Six outlet examples from the REP300 catalog. Click a photo to enlarge. Confirm outlet availability, AC voltage, frequency and required market documentation for your order.
03 / TECHNICAL SPECIFICATIONS
|
Parameter
|
Specification
|
|---|---|
|
Rated / peak output
|
300W / 600W; peak duration not specified
|
|
Waveform / distortion
|
Pure sine wave / THD <3% with linear load
|
|
Output frequency
|
50Hz ±0.5Hz or 60Hz ±0.5Hz
|
|
Maximum efficiency
|
90%; varies with load and conditions
|
|
USB / cooling
|
5V / 1A · Intelligent air cooling
|
|
Operating / storage temperature
|
−10°C to +50°C / −30°C to +70°C
|
|
Listed warranty
|
2 years; confirm coverage and service terms
|
04 / SIX MODEL CODES
Choose one DC input and one AC output voltage. The voltages in each AC family are ordering options, not user-switchable settings on every unit.
|
REP300-121
|
|
|---|---|
|
DC input
|
12V
|
|
AC output ±5%
|
100 / 110 / 120V
|
|
No-load current
|
<0.3A
|
|
REP300-241
|
|
|---|---|
|
DC input
|
24V
|
|
AC output ±5%
|
100 / 110 / 120V
|
|
No-load current
|
<0.2A
|
|
REP300-481
|
|
|---|---|
|
DC input
|
48V
|
|
AC output ±5%
|
100 / 110 / 120V
|
|
No-load current
|
<0.2A
|
|
REP300-122
|
|
|---|---|
|
DC input
|
12V
|
|
AC output ±5%
|
220 / 230 / 240V
|
|
No-load current
|
<0.3A
|
|
REP300-242
|
|
|---|---|
|
DC input
|
24V
|
|
AC output ±5%
|
220 / 230 / 240V
|
|
No-load current
|
<0.2A
|
|
REP300-482
|
|
|---|---|
|
DC input
|
48V
|
|
AC output ±5%
|
220 / 230 / 240V
|
|
No-load current
|
<0.2A
|
|
Parameter
|
Specification
|
|---|---|
|
12V input variant
|
10–15.5V
|
|
24V input variant
|
20–31V
|
|
48V input variant
|
40–61V
|
The catalog lists low-voltage, over-voltage, overload and over-temperature protection, short-circuit indication and fuse operation for reverse polarity. Confirm the settings and protection behavior for the ordered model.
|
Parameter
|
Specification
|
|---|---|
|
Low-voltage alarm (12V / 24V / 48V)
|
10.5 ±0.5V / 21 ±0.5V / 42 ±1V
|
|
Low-voltage cutoff (12V / 24V)
|
10 ±0.5V / 20 ±0.5V; 48V tolerance to confirm
|
|
Over-voltage cutoff (12V / 24V / 48V)
|
15.5 ±0.5V / 31 ±0.5V / 61 ±1V
|
|
Low-voltage recovery (12V / 24V / 48V)
|
13 ±0.5V / 24 ±0.5V / 48 ±1V
|
|
Over-voltage recovery (12V / 24V / 48V)
|
14.8 ±0.5V / 29.5 ±0.5V / 59 ±1V
|
|
Parameter
|
Specification
|
|---|---|
|
Product dimensions
|
208 × 112 × 60 mm
|
|
Packing dimensions
|
235 × 145 × 73 mm
|
|
Net / gross weight
|
0.85 / 1.02 kg
|
|
Units per carton
|
20 pcs
|
|
Carton dimensions
|
480 × 330 × 543 mm
|
|
Carton gross weight
|
21.5 kg
|
Confirm the final drawing and packing data before integration or freight booking. The legacy 48V low-voltage protection tolerance requires clarification.
05 / BUSINESS SOURCING
|
|
Can one REP300 accept 12V, 24V and 48V batteries?
|
|---|
|
No. These are separate model variants with different input ranges. Choose the version that matches your battery voltage.
|
|
Is REP300 a battery charger or solar controller?
|
|---|
|
REP300 is a DC-to-AC inverter. The published specification does not list battery charging, a solar charge controller or automatic UPS transfer. Discuss those functions separately if your project needs them.
|
|
Does the 600W peak rating guarantee motor startup?
|
|---|
|
No. The published peak figure has no duration or startup test condition. Provide the equipment and starting characteristics for a suitability review.
|
|
What should I include in a quotation request?
|
|---|
|
Include company name, application, REP300 model code, DC input, AC voltage and frequency, outlet, destination country, quantity and required documentation. Add branding or packaging requirements where applicable.
|
|
Can I request samples or custom branding?
|
|---|
|
Send the proposed configuration and quantity. Sample availability, branding feasibility, MOQ and production lead time are confirmed per quotation.
|
