Pure Sine Wave Output
Stable power for sensitive home & solar loads
Parallel Operation (Up to 6 Units)
Flexible system expansion for higher capacity
Dual AC Inputs & Outputs
Supports grid, generator and backup power
Dual MPPT (50–450Vdc)
Maximize solar energy harvesting
High Efficiency up to 98%
Lower energy loss, higher system performance
Built-in Wi-Fi Monitoring
Remote control & real-time system status

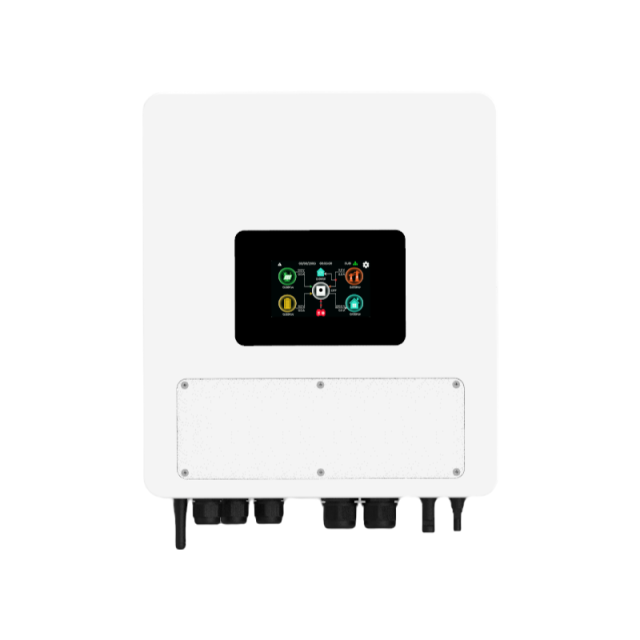

Touchscreen Display
Easy setup and intuitive operation
IP65 Protection Rating
Suitable for outdoor and harsh environments
MODEL
RES-3K-65
RES-6K-65
PHASE
1-phasein/1-phaseout
MAXIMUMPVINPUTPOWER
4500W
9000W
RATEDOUTPUTPOWER
3000W
6000W
MAXIMUMCHARGINGPOWER
3000W
6000W
GRID-TIEDOPERATION
PV INPUT(DC)
MaximumDCVoltage
/
500Vdc
Start-upVoltage/Initial FeedingVoltage
/
90Vdc/120Vdc
MPPTVoltage Range
/
60Vdc-450Vdc
Number of MPPT Trackers /Maximum Input Current
/
2/18A
GRIDOUTPUT(AC)
NominalOutputVoltage
/
220/230/240VAC
OutputVoltage Range
/
184-264.5VACor195.5-253VACor184-264.4VAC(Selectable)
NominalOutputCurrent
/
26.1A
Power Factor
/
>0.99
EFFICIENCY
MaximumConversion Efficiency(DC/AC）
/
97%
OFF-GRIDOPERATION
ACINPUT
ACStart-upVoltage/Auto RestartVoltage
120-140VAC/180VAC
Acceptable InputVoltage Range
90-280VAC
Frequency Range
50Hz/60Hz(Autosensing)
MaximumAC InputCurrent
18A
40A
PV INPUT(DC)
MaximumDCVoltage
500Vdc
520Vdc
MPPTVoltage Range
50Vdc-450Vdc
NumberofMPPTTrackers/MaximumInputCurrent
1/18A
2/18A
BATTERYMODEOUTPUT(AC)
NominalOutputVoltage
220/230/240VAC
OutputWaveform
Puresinewave
Efficiency(DCtoAC)
93%
HYBRIDOPERATION
PV INPUT(DC)
MaximumDCVoltage
500Vdc
Start-upVoltage/Initial FeedingVoltage
90Vdc/120Vdc
MPPTVoltage Range
50Vdc-450Vdc
NumberofMPPTTrackers/Maximum InputCurrent
1/18A
2/18A
GRIDOUTPUT(AC)
NominalOutputVoltage
220/230/240VAC
OutputVoltage Range
184-264.5 VACor 195.5-253 VACor 184-264.4 VAC(Selectable)
NominalOutputCurrent
13A
26.1A
ACINPUT
ACStart-upVoltage/Auto RestartVoltage
120-140VAC/180VAC
Acceptable InputVoltage Range
90-280VACor170-280VAC
MaximumAC InputCurrent
16A
40A
BATTERYMODEOUTPUT(AC)
NominalOutputVoltage
220/230/240VAC
Efficiency(DCtoAC)
93%
BATTERY&CHARGER
Nominal DCVoltage
24Vdc
48Vdc
MaximumSolarChargingCurrent
100A
135A
MaximumACChargingCurrent
100A
135A
MaximumChargingCurrent
100A
135A
GENERAL
PHYSICAL
Dimension,DxWxH(mm)
451x353x160.2
471x444x200
NetWeight(kg)
12.3
18.5
INTERFACE
Parallel Function
/
Yes,6units
Communication Port
RS232/RS485/Wi-Fi
RS232/RS485/CAN/Wi-Fi/Drycontact
ENVIRONMENT
Humidity
5%to95%Relative Humidity(Non-condensing)
IPdegree
IP65
OperatingTemperature
-10℃～50℃
StorageTemperature
-15℃～60℃
