2000W pure sine wave inverter with Bluetooth mobile app control and touch-screen support. 4000W peak for approximately 1–2 seconds. Separate 12V, 24V and 48V DC input versions; dimensions 320 × 205 × 95 mm.
ROGERELE’s 2000W pure sine wave inverter combines battery-to-AC power with Bluetooth mobile app control and touch-screen support. View inverter operation, working status and relevant parameter settings through the supplied interface. Select a separate 12V, 24V or 48V battery input version for your system.
4000W peak · approximately 1–2 seconds
Mobile viewing and local user interface
Separate DC input versions

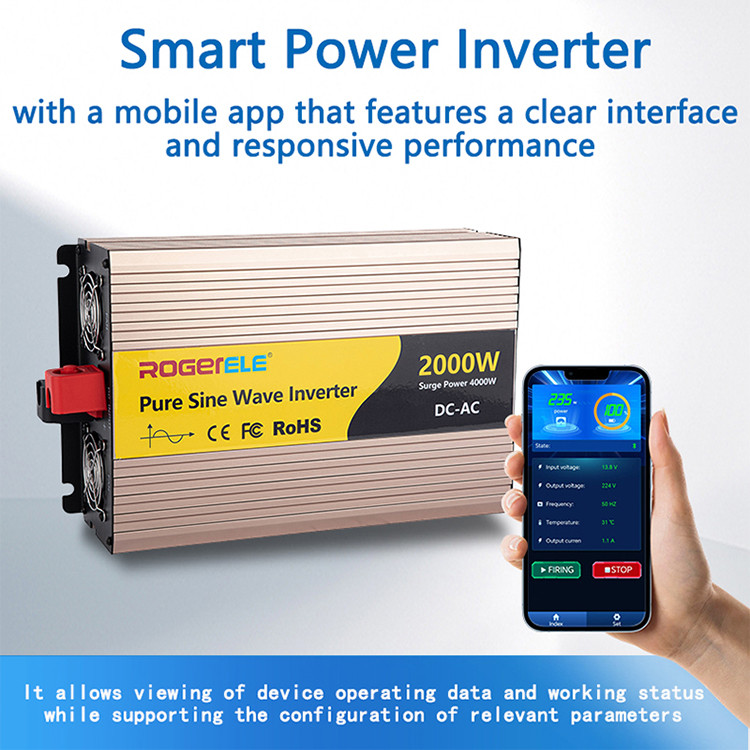

The illustrated app shows input/output voltage, frequency, temperature and output current. Use Bluetooth to access supported working-status information and settings.
Use the supplied screen for local status viewing and supported controls; specify the controller and accessories required for your order.
iPhone users: search for “inverter remote” in the Apple App Store. Android users: search for “inverter remote control”.

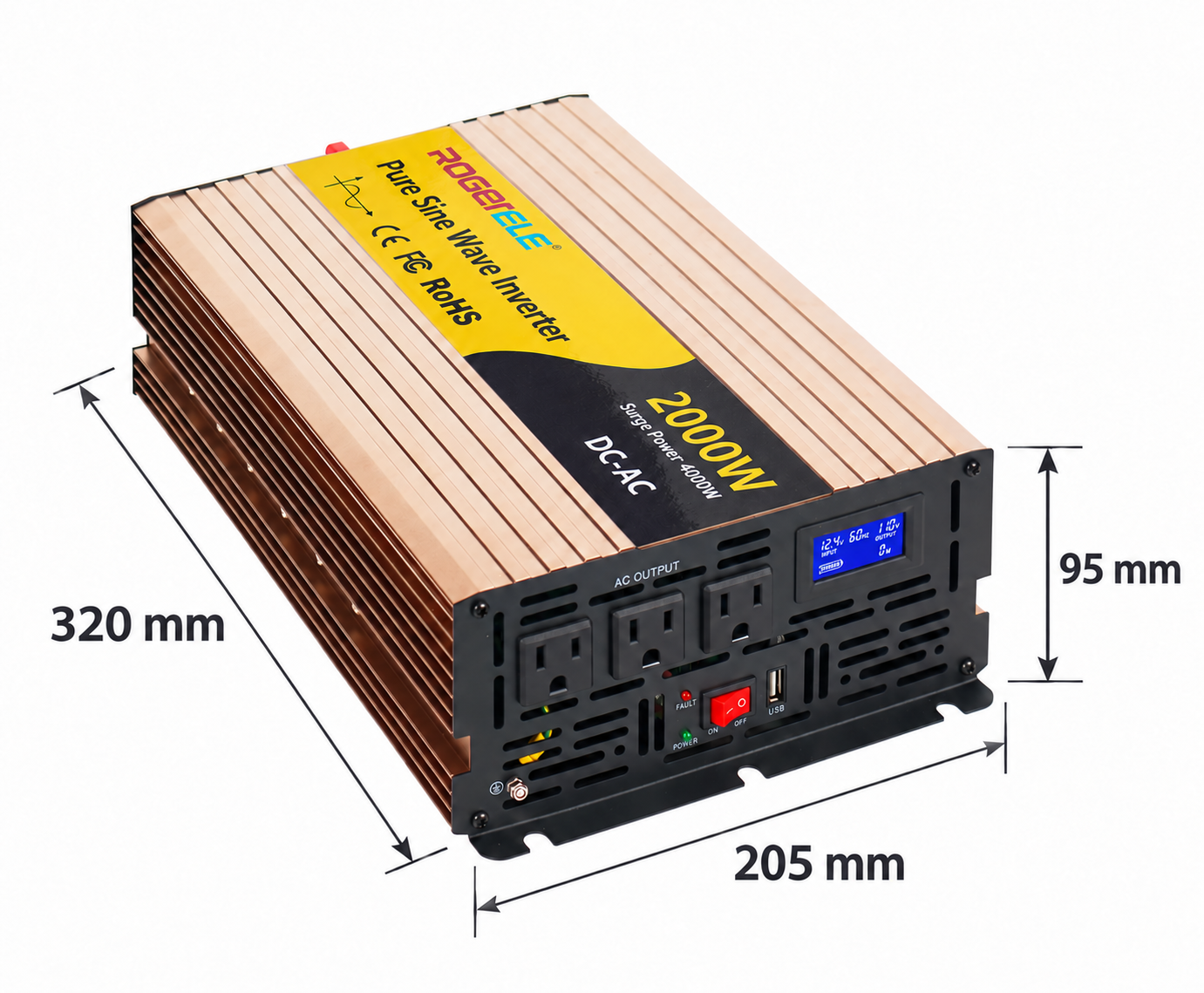

Allow space for ventilation, DC cables, AC connections and access to the controls. The listed standard enclosure measures 320 × 205 × 95 mm.
|
Electrical / control
|
Specification
|
|---|---|
|
Rated / peak output
|
2000W / 4000W; peak duration approximately 1–2 seconds
|
|
Output waveform
|
Pure sine wave
|
|
AC output voltage
|
100 / 110 / 120V or 220 / 230 / 240V, ±5%
|
|
Output frequency
|
50Hz ±0.5Hz or 60Hz ±0.5Hz
|
|
Waveform distortion
|
THD <3% (linear load)
|
|
Mobile app connection
|
Bluetooth
|
|
Touch screen
|
Supported; specify supplied controller
|
|
Cooling
|
Intelligent air cooling
|
|
Operating / storage temperature
|
−10°C to +50°C / −30°C to +70°C
|
|
Mechanical / supply
|
Listed value
|
|---|---|
|
Product dimensions
|
320 × 205 × 95 mm
|
|
Packing dimensions
|
393 × 252 × 150 mm
|
|
Net / gross weight
|
3900 / 4600 g
|
|
Quantity per carton
|
4 pcs
|
|
Carton dimensions
|
525 × 410 × 330 mm
|
|
Gross weight per carton
|
18400 g
|
|
USB option
|
QC3.0 listed for 12V / 24V; not listed for 48V
|
|
Warranty
|
2 years; confirm terms
|
|
DC version
|
Operating range
|
No-load current
|
Listed maximum efficiency
|
|---|---|---|---|
|
12V
|
10–15.5V
|
<0.9A
|
90%
|
|
24V
|
20–31V
|
<0.5A
|
92%
|
|
48V
|
40–61V
|
<0.3A
|
95%
|
Efficiency varies with load and operating conditions. The three input voltages are separate configurations.
|
Parameter
|
12V version
|
24V version
|
48V version
|
|---|---|---|---|
|
Low-voltage alarm
|
10.5 ±0.5V
|
21 ±0.5V
|
42 ±1V
|
|
Low-voltage cutoff
|
10 ±0.5V
|
20 ±0.5V
|
40 ±0.5V
|
|
Over-voltage cutoff
|
15.5 ±0.5V
|
31 ±0.5V
|
61 ±1V
|
|
Low-voltage recovery
|
12.3 ±0.5V
|
24 ±0.5V
|
48 ±1V
|
|
Over-voltage recovery
|
14.8 ±0.5V
|
29.5 ±0.5V
|
59 ±1V
|
|
Function
|
Listed behavior
|
|---|---|
|
Low voltage
|
Alarm followed by shutdown as voltage falls
|
|
Over voltage / overload
|
Red indicator and shutdown
|
|
Over temperature
|
Alarm followed by shutdown as temperature rises
|
|
Short circuit
|
Red indicator; confirm reset behavior
|
|
Reverse polarity
|
Fuse operation; use required installation protection
|
Battery-fed AC power for matched appliances and electronics. Check continuous and starting loads, cooling and battery capability.
A DC-to-AC inverter stage for battery systems. Solar charging and AC battery charging equipment are specified separately.
Evaluate actual runtime, battery discharge limits and installation conditions for mobile work or auxiliary power.
Specify DC voltage, AC output, outlet type, app, touch-screen controller and accessories for the required configuration.
Specify battery voltage, AC output voltage and frequency, continuous/startup loads and destination outlet type.
Specify supported phones, pairing requirements, required control distance, touch-screen controller and included accessories.
The Bluetooth-enabled configuration connects the inverter with a mobile app for nearby viewing of operating data, working status and supported controls or settings. Pair it using the procedure supplied with your order. Bluetooth operation depends on the phone, distance and surrounding conditions; a control range is not specified on this page.
iPhone users: search for “inverter remote” in the Apple App Store. Android users: search for “inverter remote control”. Use the version specified for your inverter and follow the supplied pairing instructions.
Yes. This model supports both mobile app control and touch-screen operation. The screen provides a local interface, while the phone provides Bluetooth access. Confirm the controller supplied and the controls or settings available in the ordered configuration.
The specified connection is Bluetooth. Internet or cloud control is not listed for this product, so do not assume the app can operate the inverter from any location. Use the supplied Bluetooth connection procedure and confirm your required operating distance before ordering.
Rated output is 2000W. The 4000W peak lasts approximately 1–2 seconds and is intended for brief startup demand. Match continuous loads to the rated output and check startup demand against the inverter, battery and BMS; test motors or compressors with the intended system.
No. These are separate hardware versions, not voltage settings you can switch in the app. Choose a version that matches the battery operating range and specify the AC output voltage, frequency, outlet type, Bluetooth app and touch-screen requirements when requesting a quotation.
