What Can a 2000W Pure Sine Wave Inverter Actually Run?
Date:2026-10-02 Click:29 Source:Rogerele

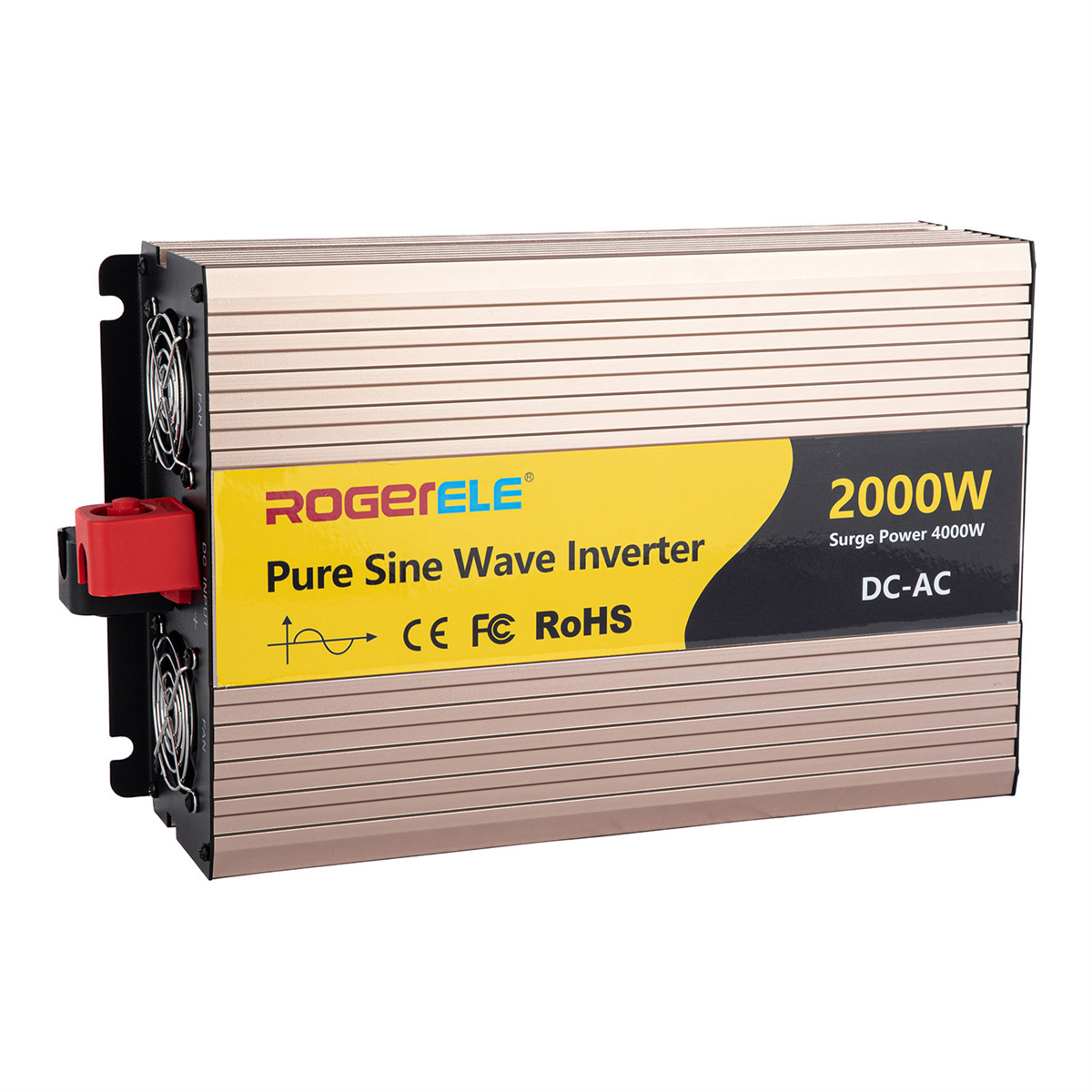

Quick answer: A Rogerele REP2000 pure sine wave inverter is rated 2000W continuous and 4000W peak. It can run one heat appliance in that range, such as a kettle, coffee maker or toaster, or several small loads together, such as a laptop, TV, lights, CPAP and a fridge compressor, if running watts stay at or under 2000W. It will not power a whole RV or start every air conditioner. On 12V the battery must supply about 185A at full load, so the inverter is hard-wired. A cigarette-lighter socket cannot do that. Match 12V or 24V to the vehicle, and choose 100–120V, 60Hz output for a US truck or RV.
Numbers below are from the live 2000W pure sine wave inverter page. The 1000W, 1500W and 3000W pages are used only for comparison. Appliance watts are typical nameplate ranges, not Rogerele measurements. Read your own label. For the general method, see what size inverter for a car or truck. For microwave input watts, see what size inverter for a microwave.
2000W is continuous. 4000W is only the peak
The REP2000 table lists rated power of 2000W and peak power of 4000W on every model: REP2000-121, REP2000-241, REP2000-481, REP2000-122, REP2000-242 and REP2000-482. Rated power is the running load. Peak power is short headroom for a start, such as a fridge compressor. The page does not say how many seconds that peak lasts, so do not treat 4000W as a second continuous rating.
Past 2000W running, overload protection lights a red LED and shuts the inverter down. A short circuit does the same. Over-temperature protection alarms first, then shuts down if temperature keeps rising. Listed working temperature is −10°C to +50°C, with intelligent air cooling. A chassis packed into a closed cabinet with the fans blocked can trip even when the wattage looks fine.
Output is pure sine wave, with THD under 3% on a linear load. Frequency is 50Hz ±0.5Hz or 60Hz ±0.5Hz. For the United States, order 60Hz.
Example loads a 2000W pure sine inverter can run
Add running watts of everything on at once, and stay under 2000W so a motor start still fits the 4000W peak.
| Load (typical nameplate — check yours) | Typical running watts | On REP2000 (2000W / 4000W peak) |
|---|---|---|
| Phone, camera and laptop chargers | About 10–90W | Yes, several at once |
| LED lights and a TV | About 20–150W | Yes, with a laptop |
| CPAP | Often under 100W; humidifier higher | Usually yes. Use the label. |
| Compressor fridge on AC | Often 40–100W running; start is higher | Running yes. Start uses the peak. |
| Coffee maker or toaster | About 600–1200W | Yes alone. Not with a kettle. |
| 120V electric kettle | About 1000–1500W | Yes alone. It uses most of the rating. |
| Microwave (AC input, not cooking watts) | Often about 1200–1700W input | Sometimes. Some need 3000W. |
| Rooftop RV air conditioner | Often 1000W+ running, large start | Often no. Do not assume the peak will start it. |
| 1500W heater plus a kettle | Well over 2000W together | No. Overload shutdown. |
Two heat appliances at once are the usual reason a 2000W setup trips. Run the kettle only after the coffee maker or heater is off.
Why the 12V cable, not the AC plug, is the limit
A 1500W kettle is only about 12.5A at 120V. The battery side is AC watts divided by battery volts divided by efficiency. The REP2000 page lists maximum efficiency of 90% on 12V, 92% on 24V and 95% on 48V.
| REP2000 input | Listed max. efficiency | About DC amps at 2000W AC | No-load current less than |
|---|---|---|---|
| 12V (REP2000-121 or -122) | 90% | 2000 ÷ 0.90 ÷ 12 ≈ 185A | 0.9A |
| 24V (REP2000-241 or -242) | 92% | 2000 ÷ 0.92 ÷ 24 ≈ 91A | 0.5A |
| 48V (REP2000-481 or -482) | 95% | 2000 ÷ 0.95 ÷ 48 ≈ 44A | 0.3A |
About 185A is why a 12V, 2000W inverter uses battery cables, not an accessory plug. Cigarette-lighter sockets are commonly fused around 10–15A, roughly 120–180W (general vehicle practice, not a Rogerele rating).
The 12V models list an input range of 10–15.5V, a low-voltage alarm at 10.5V ±0.5V and shutdown at 10V ±0.5V. A thin cable can hit that alarm while the battery still looks fine. The REP pages do not publish a cable chart. Size both conductors for the current above and fuse the positive lead at the battery. See how to install a car power inverter.
No-load current is under 0.9A at 12V. Switch the inverter off between uses. For runtime, see how long a battery will run an inverter. For engine-off use, see whether you need an auxiliary battery.
Pick DC voltage and AC voltage separately
The REP pure sine wave inverter series converts 12V, 24V or 48V DC into AC and runs from 300W to 6000W. On the 2000W page the suffix sets both sides:
- REP2000-121: 12V DC in, 100V, 110V or 120V AC out. Usual choice for a US car, pickup or 12V RV.
- REP2000-241: 24V DC in, the same 100–120V AC out.
- REP2000-481: 48V DC in, 100–120V AC out.
- REP2000-122, REP2000-242 and REP2000-482: the same DC inputs, but 220V, 230V or 240V AC. Wrong family for a standard US appliance.
Do not put a 12V inverter on a 24V truck. Over-voltage protection on the 12V models is 15.5V ±0.5V. The 24V input range is 20–31V, with over-voltage protection at 31V ±0.5V. 12V and 24V models list a QC3.0 USB port. The 48V models do not. The chassis is 355 × 205 × 95 mm, net weight 3900 g, with a 2-year warranty.
When 1500W is enough, and when you need 3000W
Step down if you never run a heat appliance. The 1000W model is 1000W continuous and 2000W peak (275 × 180 × 80 mm, net 2500 g, 12V efficiency 90%, 12V no-load under 0.4A). The 1500W model is 1500W continuous and 3000W peak (310 × 180 × 80 mm, net 2900 g, 12V no-load under 0.8A).

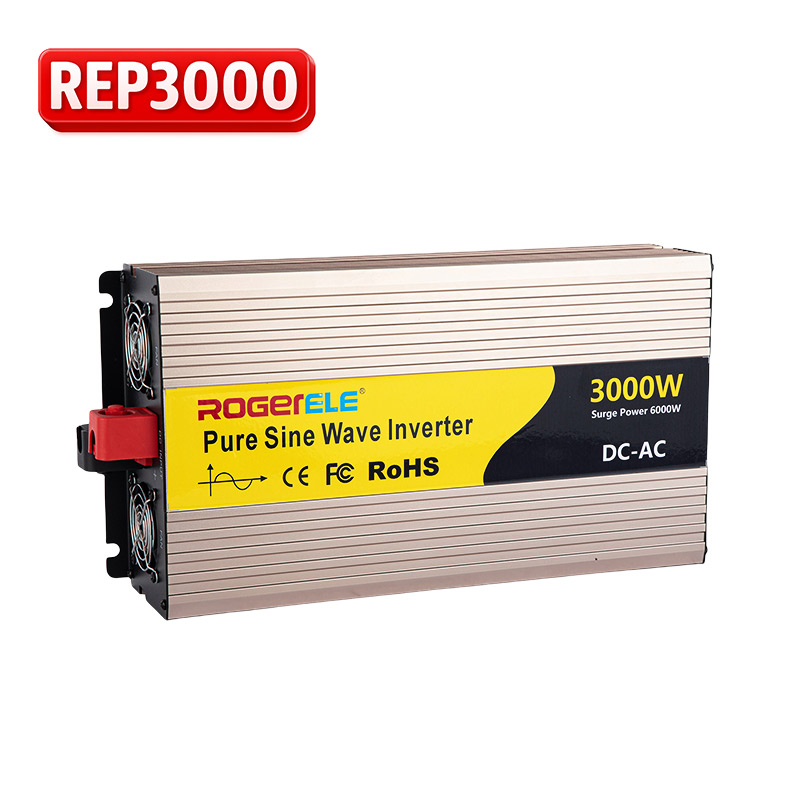

Step up when a microwave or heater must run while the fridge stays on. The 3000W model is 3000W continuous and 6000W peak (415 × 205 × 95 mm, net 4950 g). At 12V and 90% efficiency that is about 278A. At 24V and 92% it is about 136A. All three are in the pure sine wave inverter category.
FAQ
Can a 2000W pure sine inverter run a microwave in a truck or RV?
Only if AC input watts, not cooking watts, sit under 2000W with margin. Some ovens need 3000W. Hard-wire the inverter. A 12V socket cannot feed it.
Will it run a refrigerator?
Running watts are usually far under 2000W. Peak power is 4000W, but the page does not state how long that peak lasts. If it shuts down as the compressor starts, the start is over the peak or the battery is sagging.
Should a truck use the 12V or the 24V model?
Match the battery. A 12V pickup uses REP2000-121 for 100–120V output. A 24V heavy truck uses REP2000-241. Full-load current is about 185A at 12V and about 91A at 24V. Never connect a 12V inverter to 24V.
Why does it shut off when the load is under 2000W?
On a 12V model, low voltage alarms around 10.5V ±0.5V and shuts down around 10V ±0.5V. A thin cable or a weak battery does this. Overload and over-temperature also shut the unit down. A red LED marks overload, over-voltage and short circuit on the product page.
Is 2000W the same as 2000W surge?
No. Here 2000W is rated power and 4000W is peak power. A label that says only “2000W surge” can be a much smaller continuous inverter. Near 1800W for long periods, or an air conditioner, look at the 3000W model.
